LP21B Level-Plane 21 Bluetooth – Precision Auto-Leveling System for Tripod or Vehicle Mounts

Scan&Go Level-Plane 21 Bluetooth

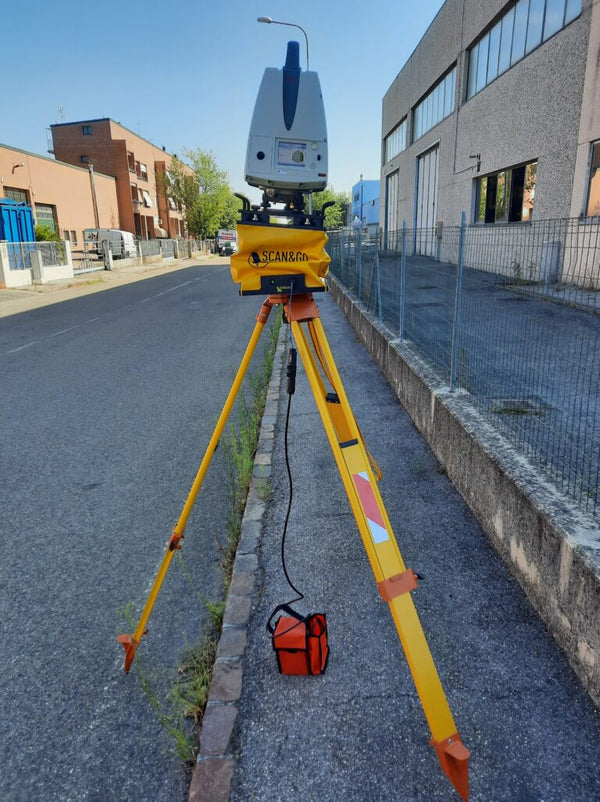

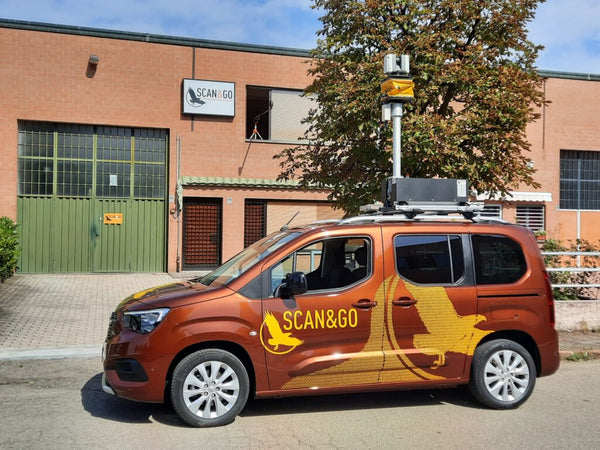

The LP21B Level-Plane 21 Bluetooth is a high-precision, commercial-grade auto-leveling platform engineered for demanding surveying, 3D scanning, and geospatial workflows. Designed for use on tripods or vehicle mounts, this system ensures perfectly level sensor positioning—critical for accuracy when operating laser scanners, GNSS antennas, mobile mapping equipment, or total station accessories.

With integrated Bluetooth connectivity, the LP21B enables seamless wireless control, adjustment, and monitoring from mobile devices or field controllers. Its rugged construction provides dependable performance in harsh outdoor environments, while fast stabilization eliminates downtime and improves productivity on every jobsite.

Ideal for commercial surveyors, construction professionals, BIM technicians, forensic mappers, geospatial engineers, and mobile scanning teams, the LP21B Level-Plane 21 is the professional leveling solution trusted for accuracy, stability, and workflow efficiency.

Technical Data

• Accuracy with manual leveling +/- 3”
• Accuracy with automatic leveling +/- 15”
• Weight 7 kg
• Maximum load 35 kg
• External dimensions 25x25x h 20 cm
• Temperature limit during the use of the equipment - 30° C + 55° C
• Storage temperature limit - 45° C + 70° C
• Power supply 12V
• Protection class IP66
• Maximum operating limit shooting ground slope along the longitudinal axis of the vehicle - AXIS L +/- 19°
• Maximum operating limit shooting ground slope along the perpendicular axis of the vehicle - AXIS T +/- 24°

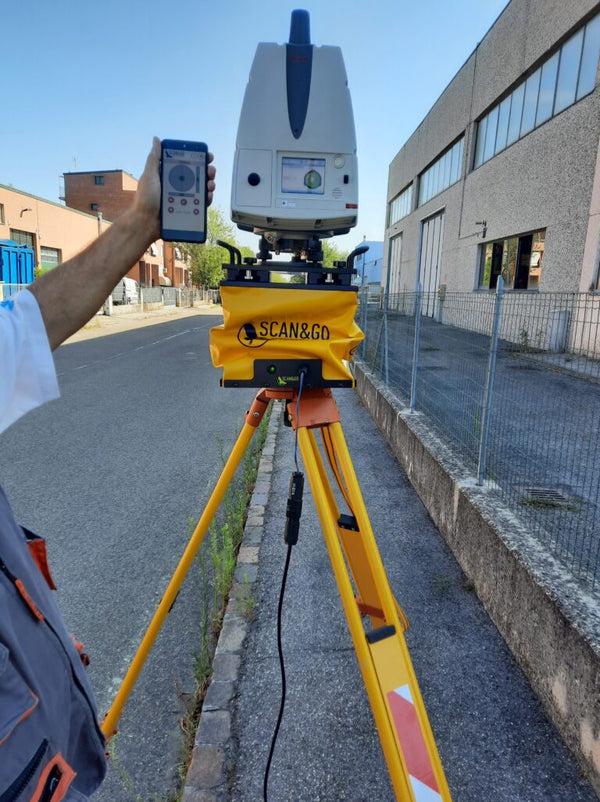

The control of LP21B is possible through an APP, which can be installed on Android.
The Bluetooth module complies to the standard regulation CE, FCC, IC and TELEC

 Supporting Accessories:

• LLR Level Lift Roof
• 1’ Spacer (SP-38 or SP-RTC)
