LLR-LEVEL-LIFT ROOF STANDARD

Scan&Go Level-Lift Roof

All of our products come with customizable packages designed to fit your company's specific needs. Please fill out the enquiry above and one of our experts will reach out shortly!

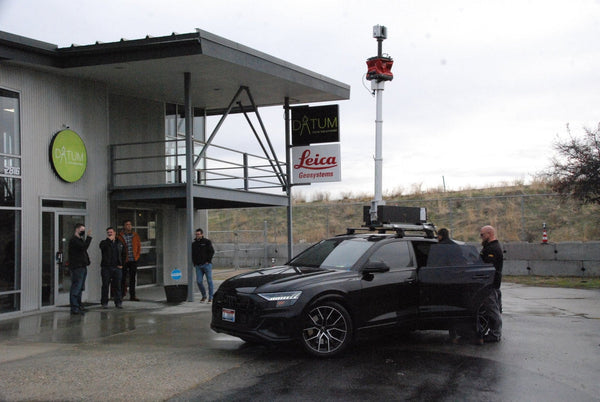

The Level-Lift Roof is a lifting extension system for the roof of your vehicle. It has been created in order to take advantages of the Level-Plane 16R when you're surveying unique infrastructure, architecture and structures.

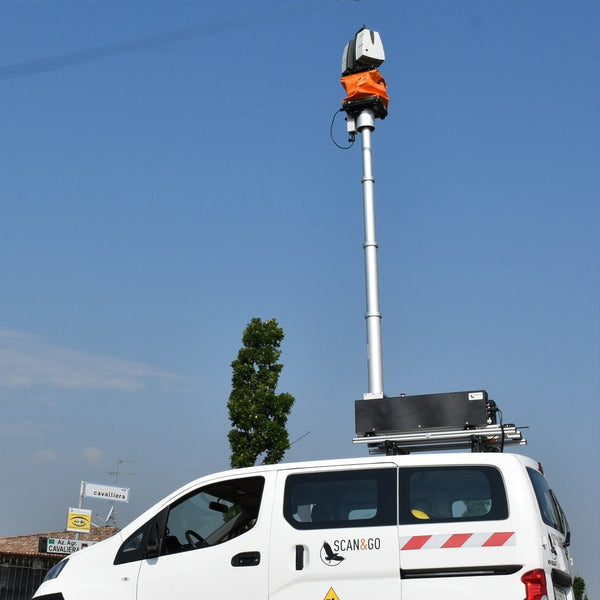

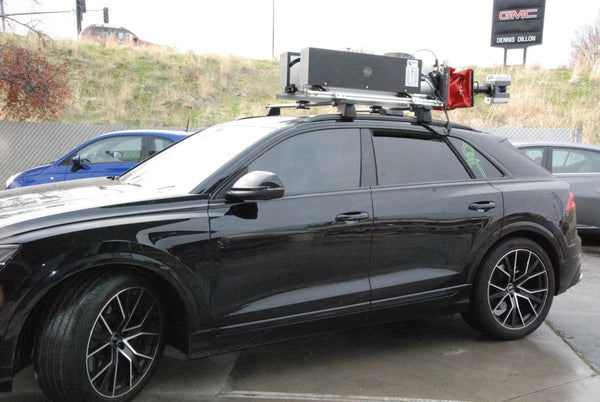

It’s composed of 4 pneumatic extendable segments (max 9 ft. height), a support plate for Level-Plane 16R and a solid frame that allows mounting on the roof rack of any vehicle. The system is made from anodized aluminum. Once the engine of the vehicle is off, the pole fully extended the system remains firm and stable during the scan session.

The Level-Lift Includes:

• LLR: Level-Lift Roof with Aluminium frame
• STA: Roof bar brackets
• RCC: LLR Cable Controller
• CLR: Connecting cable from LP16R to LLR
• CPC: Power cable
• PCP: Support plate
• BMA: Soft bag for accessories
• QBK: Quick Bracket
• WBK: Wind bracing kit (LLR-Light only)

Benefits:

By using Level-Lift Roof combined with Level-Plane 16R and raising the 3D Laser Scanner height to 9’ above vehicle roof it’s possible to obtain:

• Significant increase of measurement range
• Decreased scan time
• More detailed scans by cutting out balcony shadows, sills of windows, and details, not visible from the ground
• Improved accuracy with increased height
• Supporting Accessories Available for Purchase
  • Adapters for Leica, Trimble & Faro scanners
  • Level-Plane 16: Bluetooth, Radio & Arctic versions

Scan&Go's Level-Lift Roof is available in Light or Standard. Check out the difference between the two options to see what best fits your workflow.

LEVEL LIFT ROOF LIGHT:

• Weight: 83 lbs.
• Dimensions: 45 x 15 x 12 in.
• Max.load: 61 lbs.
• Perfect for Laser Scanner: Leica BLK360, Leica RTC360, Faro, Trimble TX5

LEVEL LIFT ROOF STANDARD:

• Weight: 121 lbs.
• Dimensions: 49 x 18 x 13 in.
• Max.load: 99 lbs.
• Perfect for Laser Scanner: Leica series C and P, Riegl, Z+F, Optech Polaris,Trimble TX8, SX10

Features

• Extended pole height: 9 ft.
• Extensions: 4
• Power supply: 12V 16A (maximum absorption load of the air compressor)
• Maximum operating limit of recovery slope of the ground in the longitudinal axis of the vehicle (direction of travel) with vertical pole without extensions opened: Total 20° of which 0° +10° e 0° -10°
• Maximum operating limit of recovery slope of the ground along the perpendicular axis to the vehicle (transverse to the direction of travel: Total 20° of which 0° +/- 10°
• Temperature limit for use of the equipment: 5° F + 104° F
• Temperature limit for the storage of equipment: - 22° F + 122° F

Supporting Accessories Available for Purchase

• BLK2GO
• BLK360 Adapters
• Level Lift Plane 16R & 16B

Data Spec Sheets:
