LP21R-LEVEL-PLANE 21 Radio for TRIPOD or VEHICLE

Scan&Go Level-Plane 21 Radio

Level-Plane 21 is a stationary multi-axis platform created for automatic leveling to ensure maximum reach of the 3D laser scanner with accuracy of +/- 15” (or +/-3” with manual control from Android app.) Available in radio or Bluetooth models.  Developed for use in all conditions.

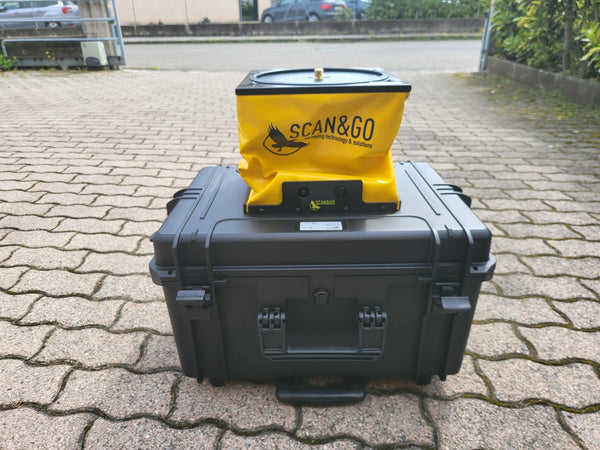

The structure is made of anodized aluminum, externally with a PVC cover to protect the mechanical and electrical parts from severe weather conditions and dust, and is removable to ensure internal inspections.

The top is made of anodized aluminum, specially designed for topographic tribrachs with standard 5/8 ".

Level-Plane 21 is powered by cable connection to the car lighter 12V.

Technical Data

• Accuracy with manual leveling +/- 3”
• Accuracy with automatic leveling +/- 15”
• Weight 7 kg
• Maximum load 35 kg
• External dimensions 25x25x h 20 cm
• Temperature limit during the use of the equipment - 30° C + 55° C
• Storage temperature limit - 45° C + 70° C
• Power supply 12V
• Protection class IP66
• Maximum operating limit shooting ground slope along the longitudinal axis of the vehicle - AXIS L +/- 19°
• Maximum operating limit shooting ground slope along the perpendicular axis of the vehicle - AXIS T +/- 24°

The Radio Controller operation range is about 50 meters.
The Radio module complies to the standard regulation CE, FCC, IC and TELEC

 Supporting Accessories:

• LLR Level Lift Roof
• 1’ Spacer (SP-38 or SP-RTC)
