LLB-LEVEL-LIFT BOX

Scan&Go Level-Lift Box

All of our products come with customizable packages designed to fit your company's specific needs. Please fill out the enquiry above and one of our experts will reach out shortly!

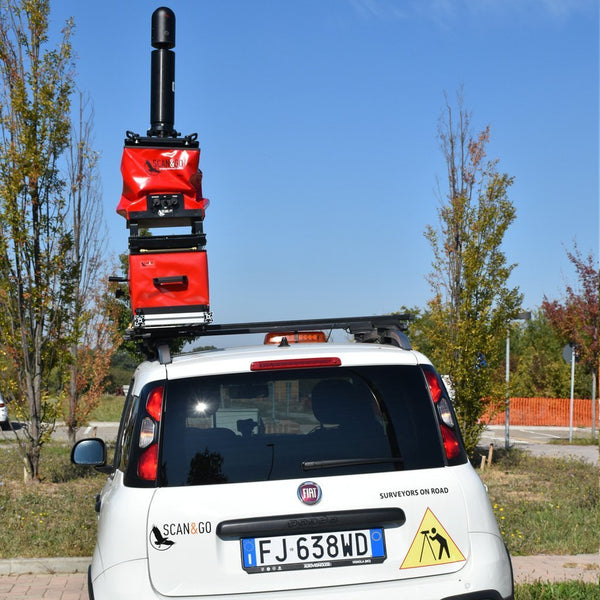

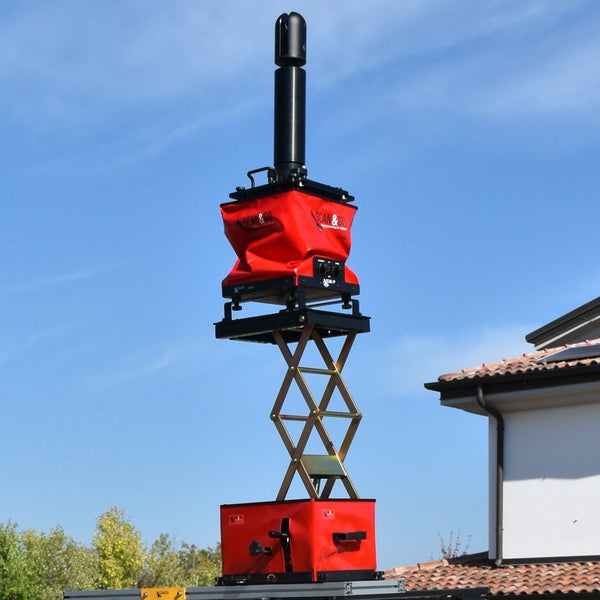

Level-Lift Box was created to take advantage of the Level-Plane 16R when you're surveying unique infrastructure, architecture, and structures. It’s composed of a compact lifting box with a hydraulic system, aluminum frame, and a handle for manual lifting.

Benefits:

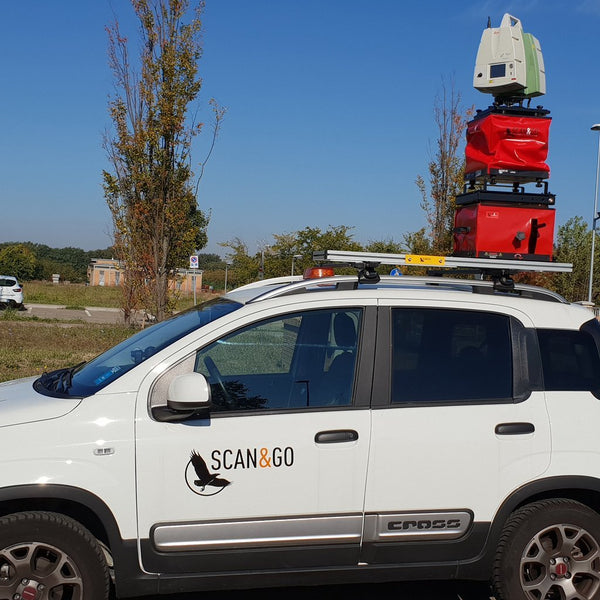

By using the Level-Lift Box combined with Level-Plane 16R and extending the 3D Laser Scanner it’s possible to obtain:

• Significant increase of measurement range
• Decrease scan time
• Improve accuracy with increased height
• Supporting Accessories Available for Purchase
  • Adapters for Leica, Trimble & Faro scanners
  • Level-Plane 16: Bluetooth, Radio & Arctic versions

Features:

• Dimensions closed system: 18 x 14 x 16 in.
• Dimensions opened system: 18 x 14 x 39 in.
• Dimensions opened system with LP16R: 18 x 14 x 55 in.
• Maximum load: 110 lbs.
• Weight: 77 lbs.
• Temperature limit for use of the equipment: 5° F + 104° F
• Temperature limit for the storage of equipment: - 22° F + 122° F
